5" 4MT TECHNICAL SPECIFICATION

5" Gauge 127mm
Coal-fired live steam , 2 cylinders
Bronze cylinder block. Stainless steel pistons .
Walschaerts valve gear
Fitted injector

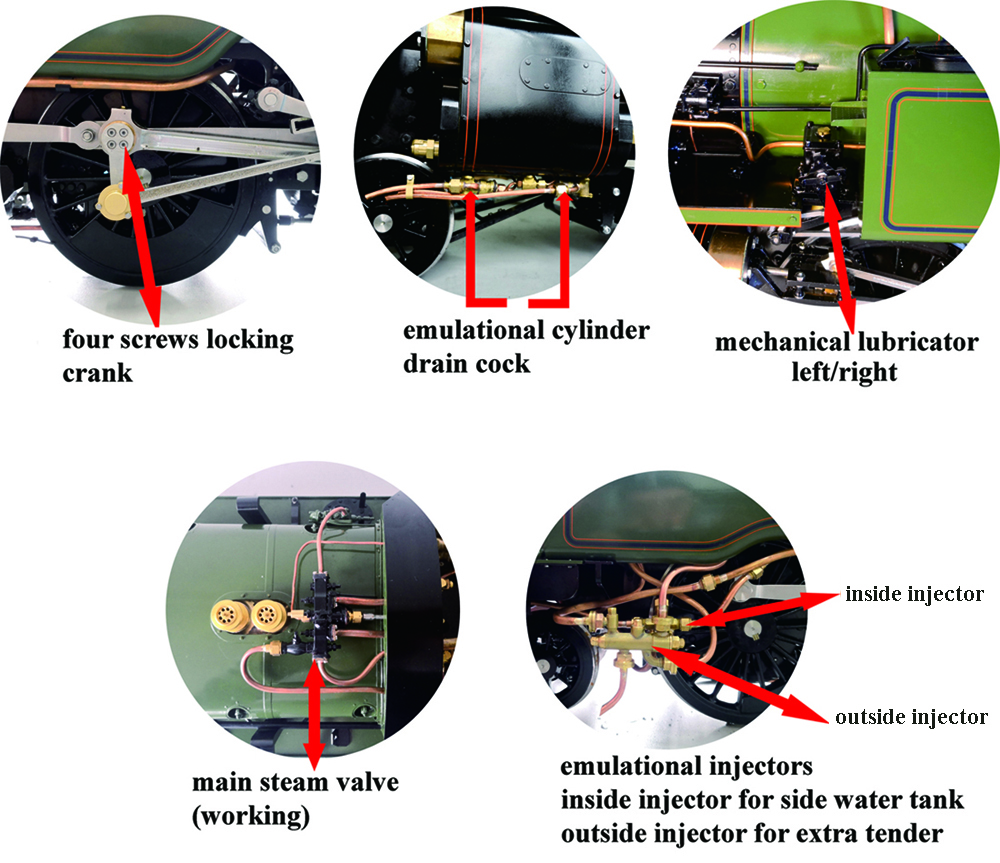

Steam operated cylinder drain cocks
Fitted  displacement lubricator / Sight feed lubrication
Silver soldered copper boiler (CE marked and hydraulically tested)
UK made Pressure gauge , working pressure at 90 psi

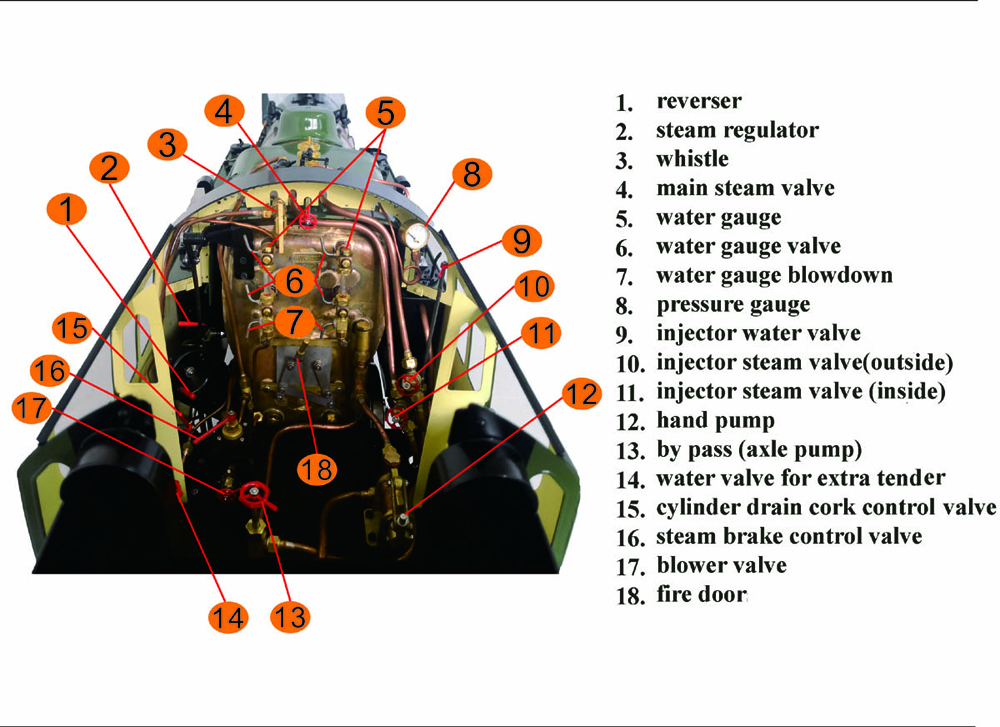

"Boiler fittings: Water gauge with blow down,
blower valve, whistle, injector steam valve,
independent check valves for axle pump and injectors,
boiler blow down valve, steam brake valve.
All valves have captive spindles"
Screw reverser
Multi-element superheater
Boiler feed by injector, axle pump and hand-pump
Stainless steel motion
Sprung axle boxes with needle roller bearings
springs to all axles
Etched brass body with rivet detail
Removable cab roof for easy access to controls
2 working safety valves
Fitted with working steam brakes
Choice of livery: Green/Black
Fully painted and lined
Ready-to-run
12 months warranty
